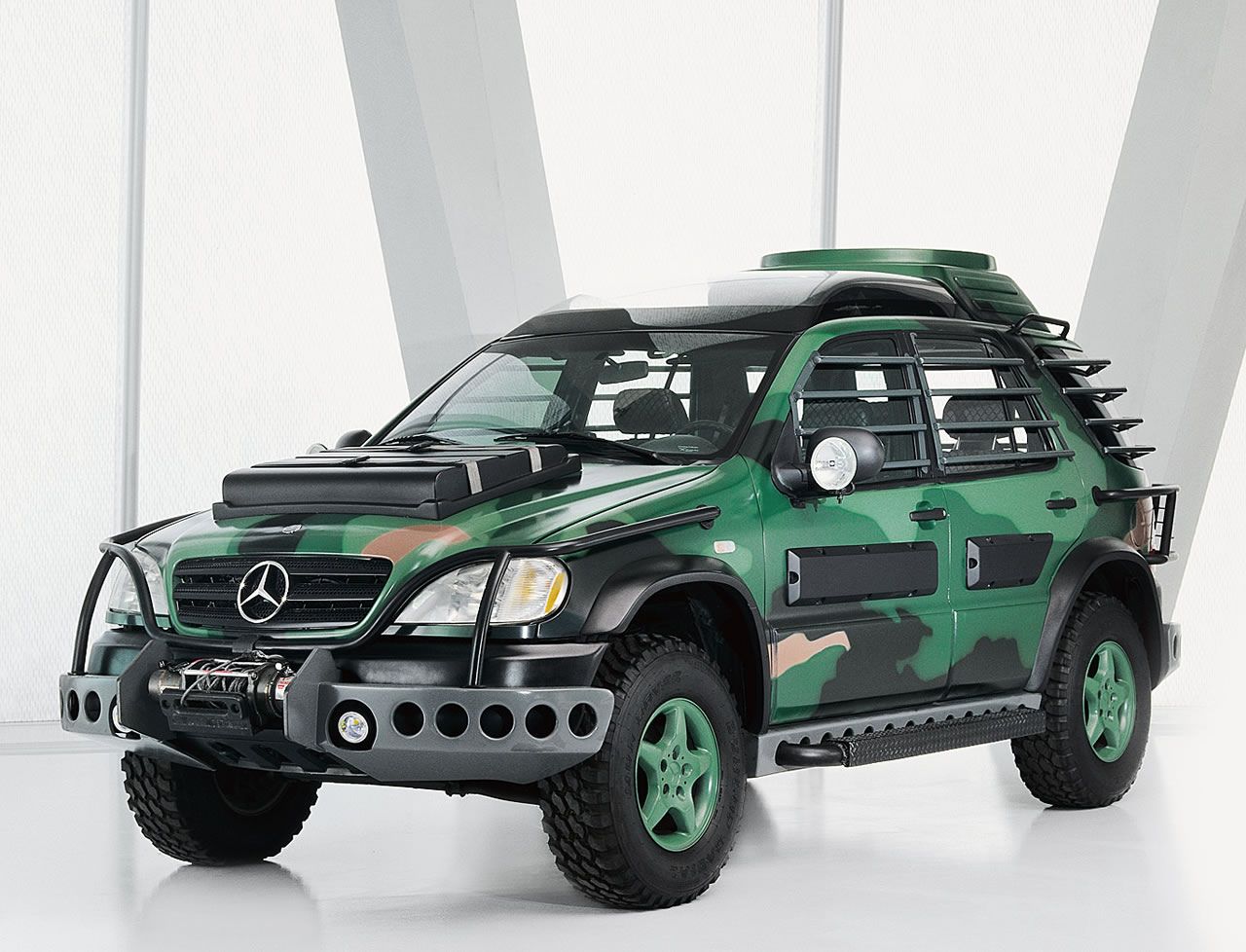

Jurassic Park ML320:

General Information:

  • 1998 – 2001 ML320, W163 family
  • Mercedes-Benz revised and updated the ML320 in 2001 for the 2002 model year
  • All movie cars were pre-production prototypes.

Quick Facts:

  • Origin:
    • Mercedes-Benz launched the first generation W163 series M-Class on February 19, 1997, in the United States for the 1998 model year, with sales beginning that September. Wikipedia
  • JP:TWL:
    • In September 1996, before the vehicle was launched, Mercedes-Benz allowed the producers of the 1997 film The Lost World: Jurassic Park to make use of modified pre-production M-Class SUVs as a way to advertise the W163 when it was launched in 1997. As a result, a Mercedes-Benz advertisement appears before the film on original VHS copies of the film. Jeff Goldblum, the star of the film, received a complimentary ML320 from Mercedes-Benz as a result of the tie-in.
  • Redesign:
    • Mercedes-Benz revised and updated the W163 in 2001 for the 2002 model year. Styling updates involved the fitment of new head- and tail-lamp lenses, front and rear bumpers, new alloy wheels on most variants, the relocation of the side turn signals from the fenders to the side-view mirrors, and various interior trim changes. Wikipedia,
  • Additional Notes:
    • In October 1998, the ML went from a 50/50 torque split (front/rear) to a 48/52.

Movie Car Locations:

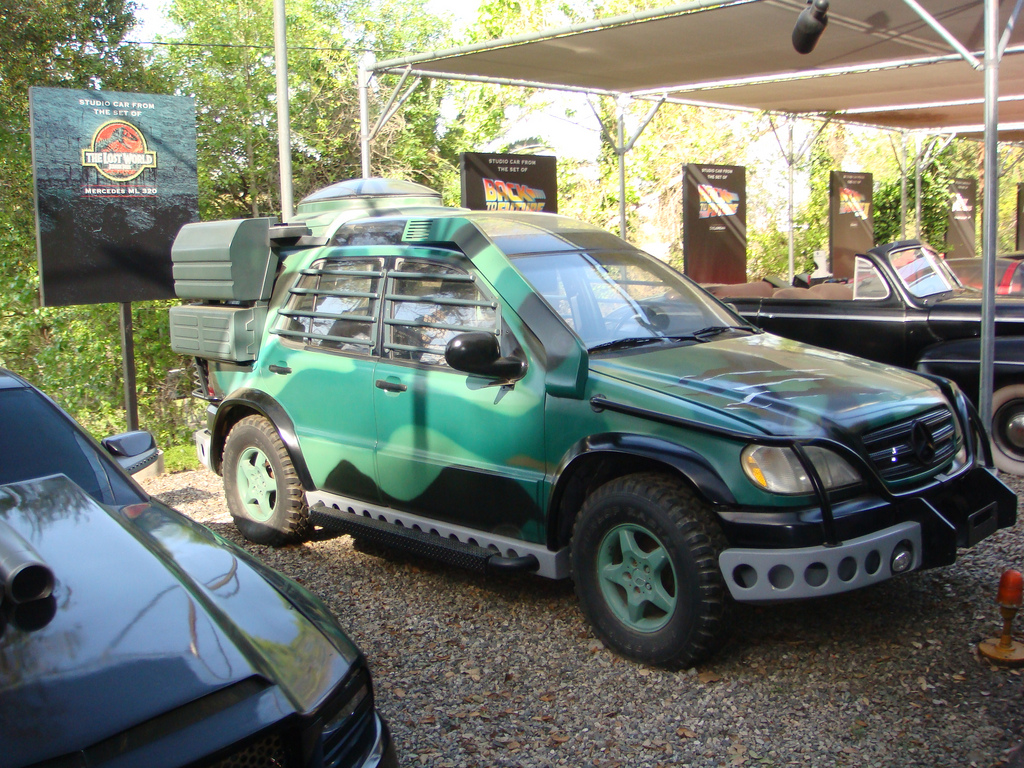

  • Universal City, California
    • Universal Studios: Backlot Tour

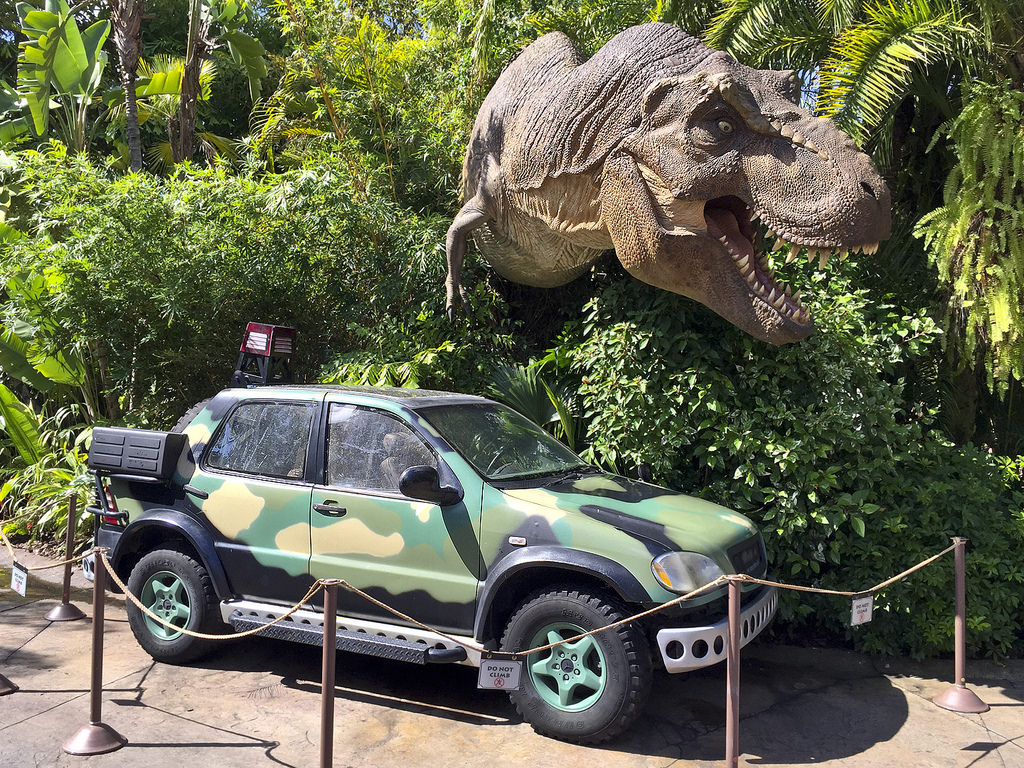

  • Orlando, Florida
    • Universal Studios: Islands of Adventure

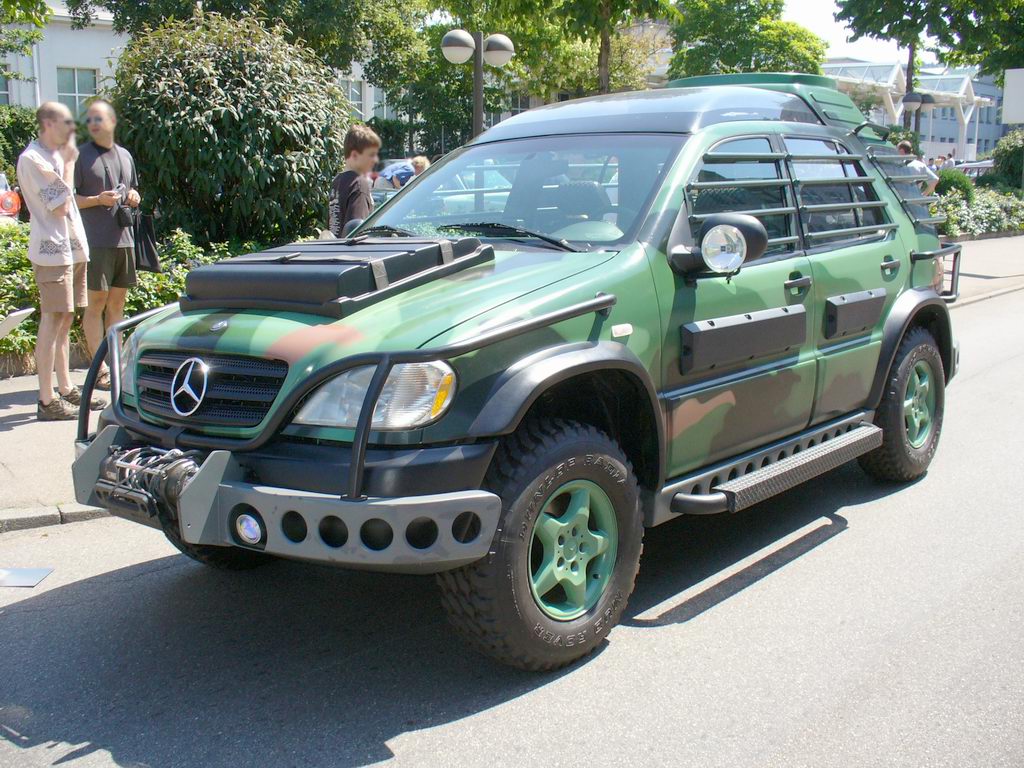

  • Stuttgart, Germany
    • Mercedes-Benz Museum

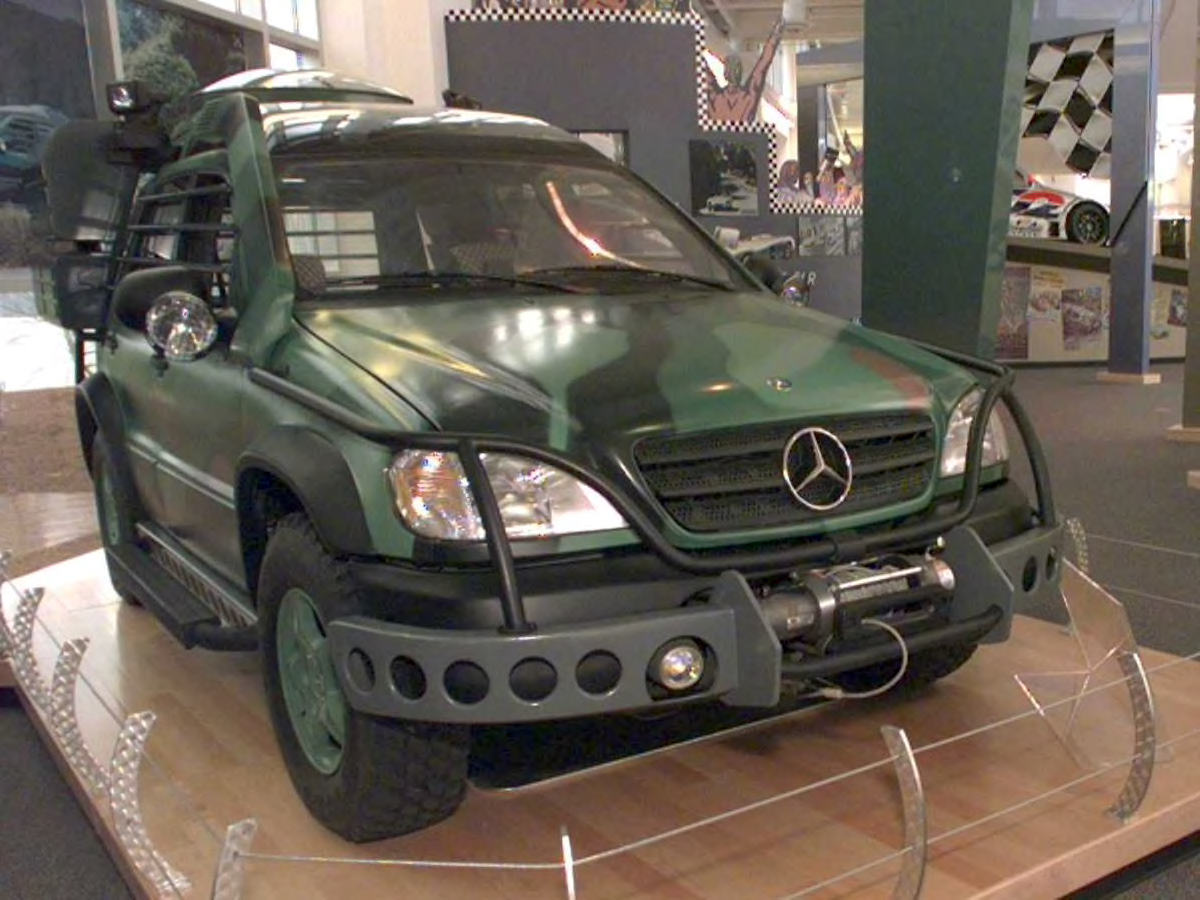

  • Vance, Alabama
    • Mercedes-Benz Visitor Center
    • No longer on display.
  • Stuttgart, Germany
    • Privatly Owned, Stored at Mercedes-Benz Museum.

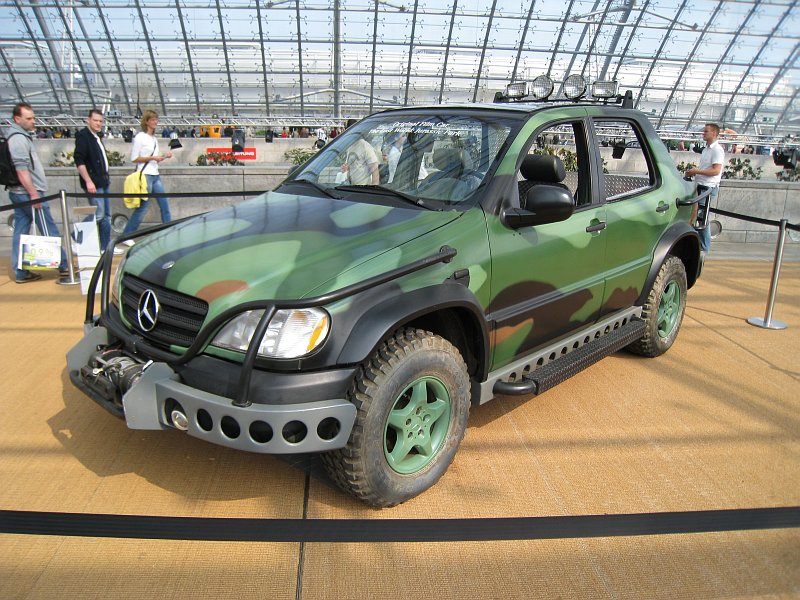

    • Last on public display at Central Garage, Frankfurt Germany in 2019.
    •

Back to Top

Lighting:

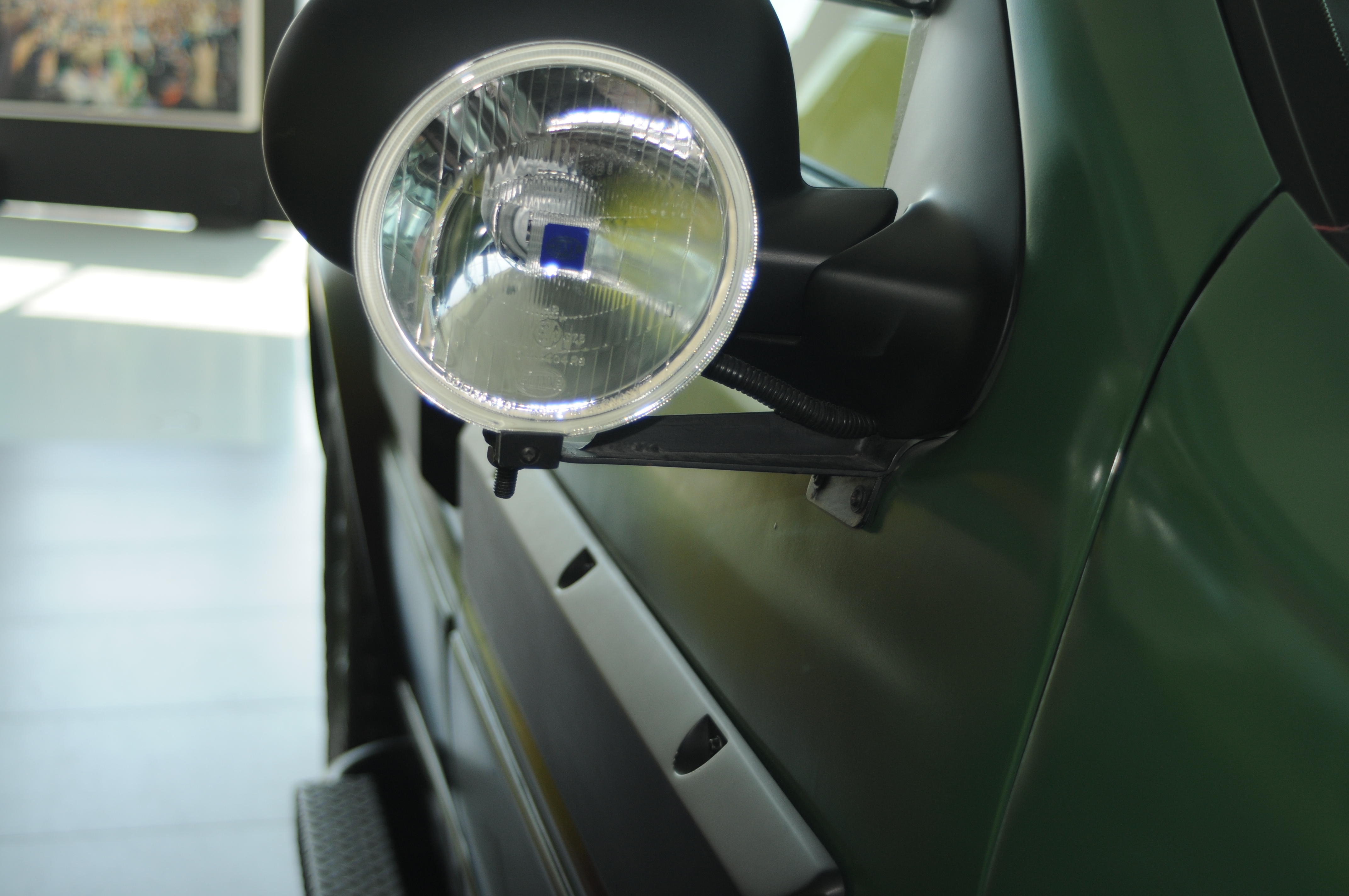

  • Door/Side Mirror Lights

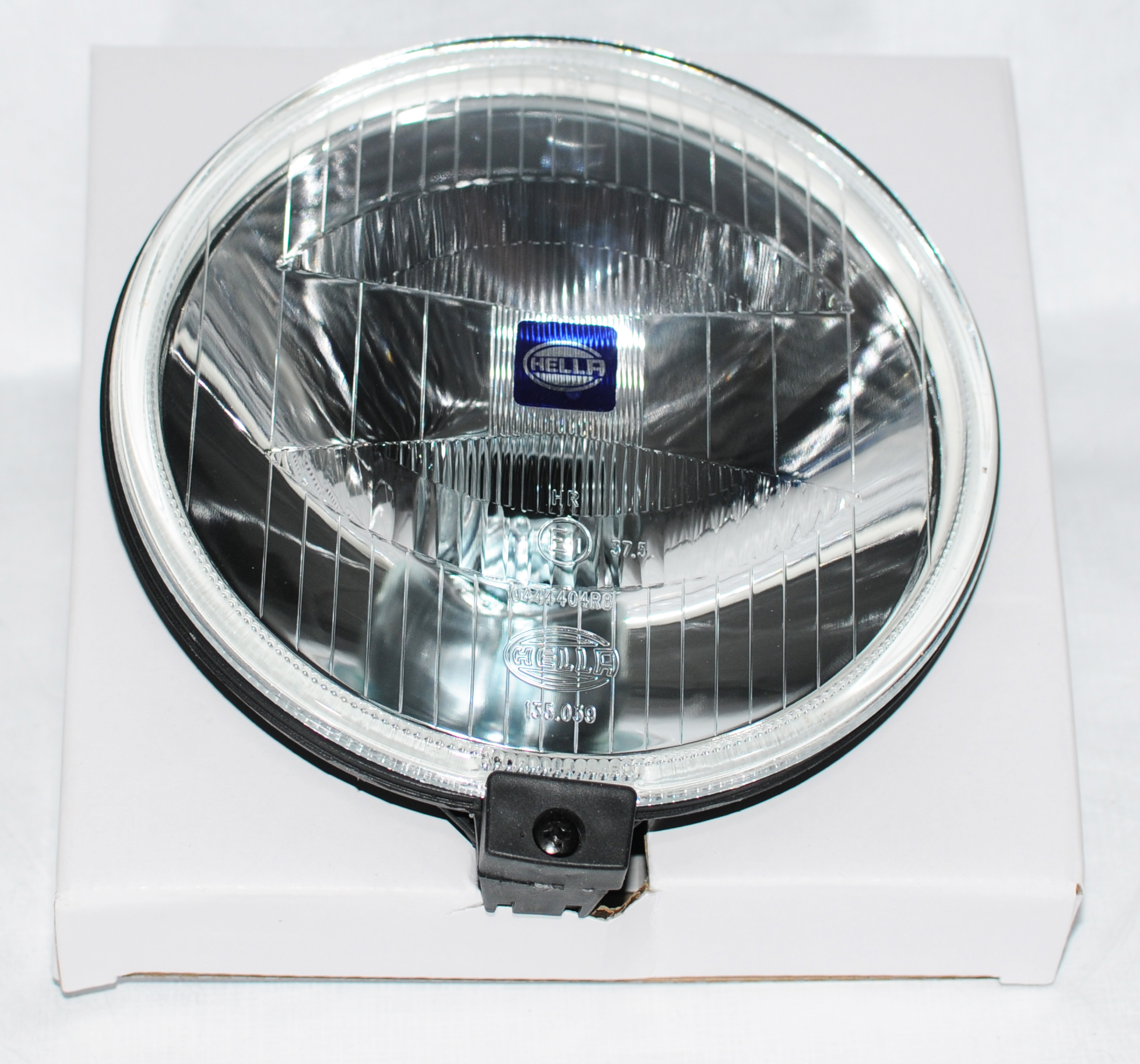

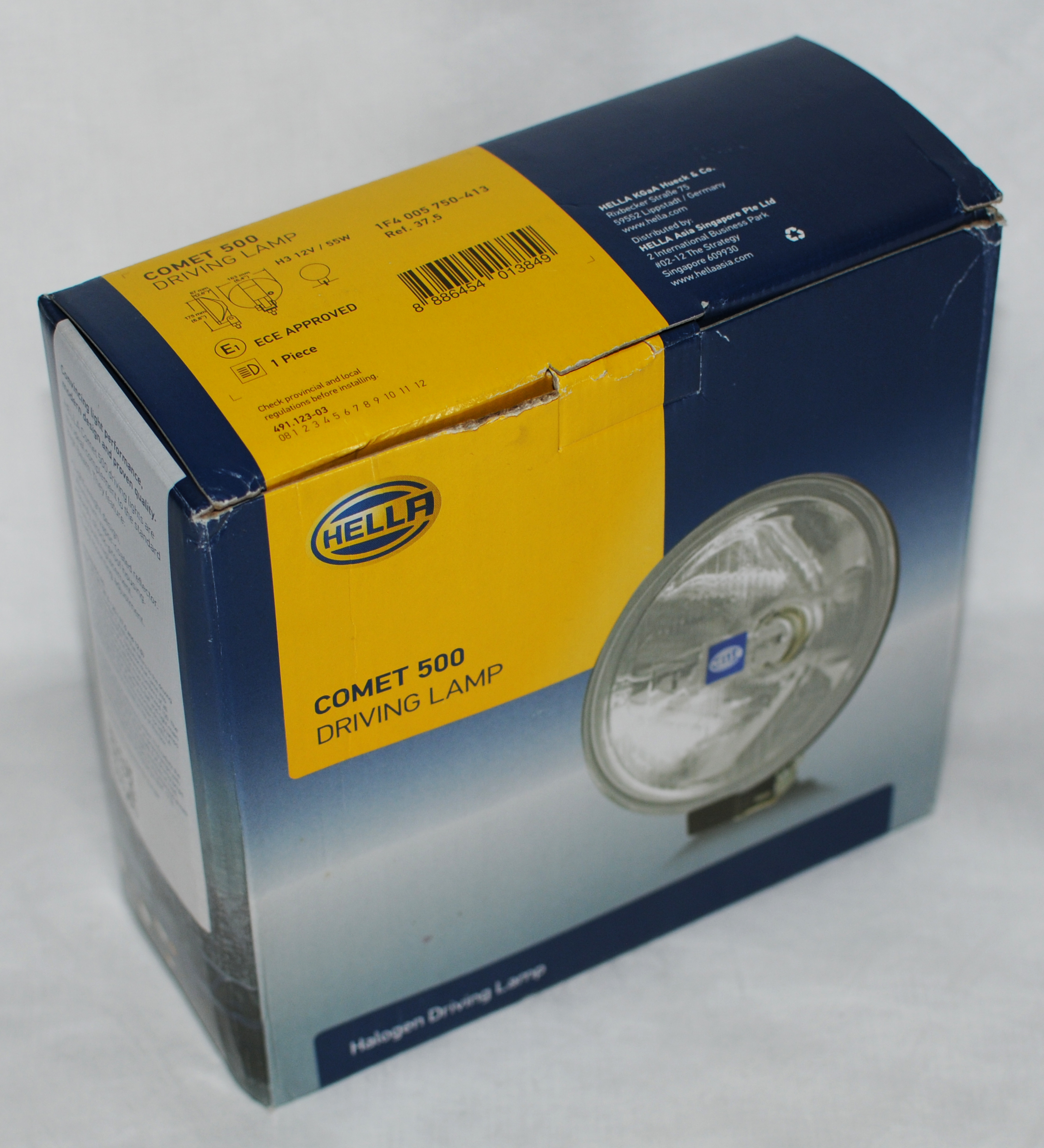

    • Hella Comet 500
      • Rock Guard (movie only)
        • Expanded Sheet Aluminum
      • Various Lens Designs available, Match visually to movie.

    • Source: MBUSI, Stuttgart Germany

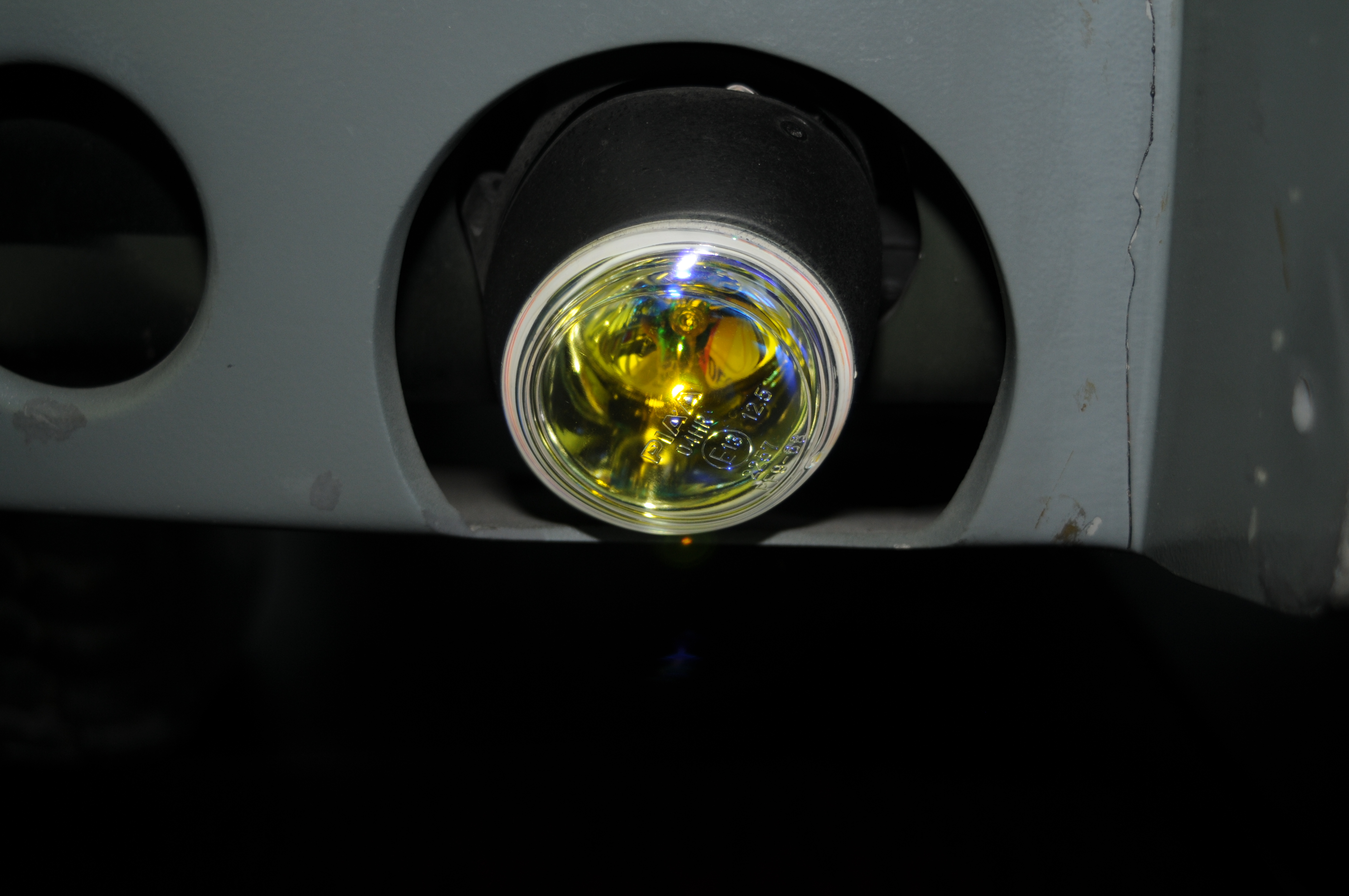

  • In-Bumper Lights
    • PIAA 910 Ion
      • Upright Mount Model
      • Modern 910 version lacks amber "Ion" Lens
      • Lights in bumper on Stuttgart car have their housing side screws and (possibly) the retaining post removed
      • Appear to be mounted sideways and are painted matte black
    • Source: MBUSI, Stuttgart Germany

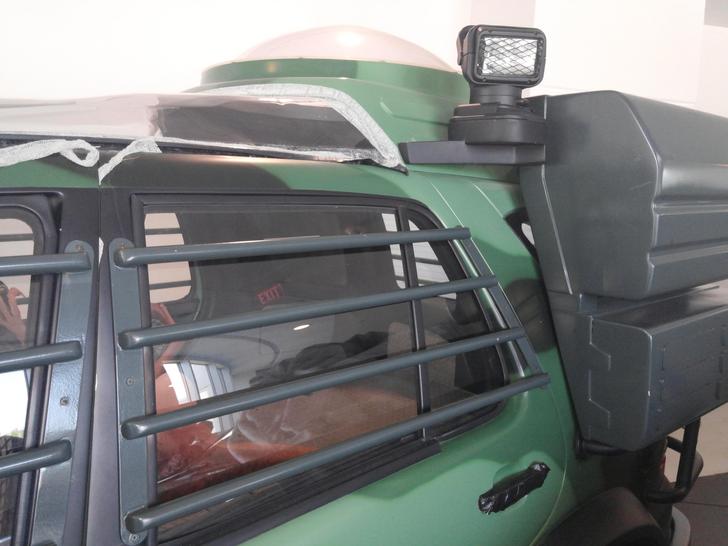

  • Roof Lights

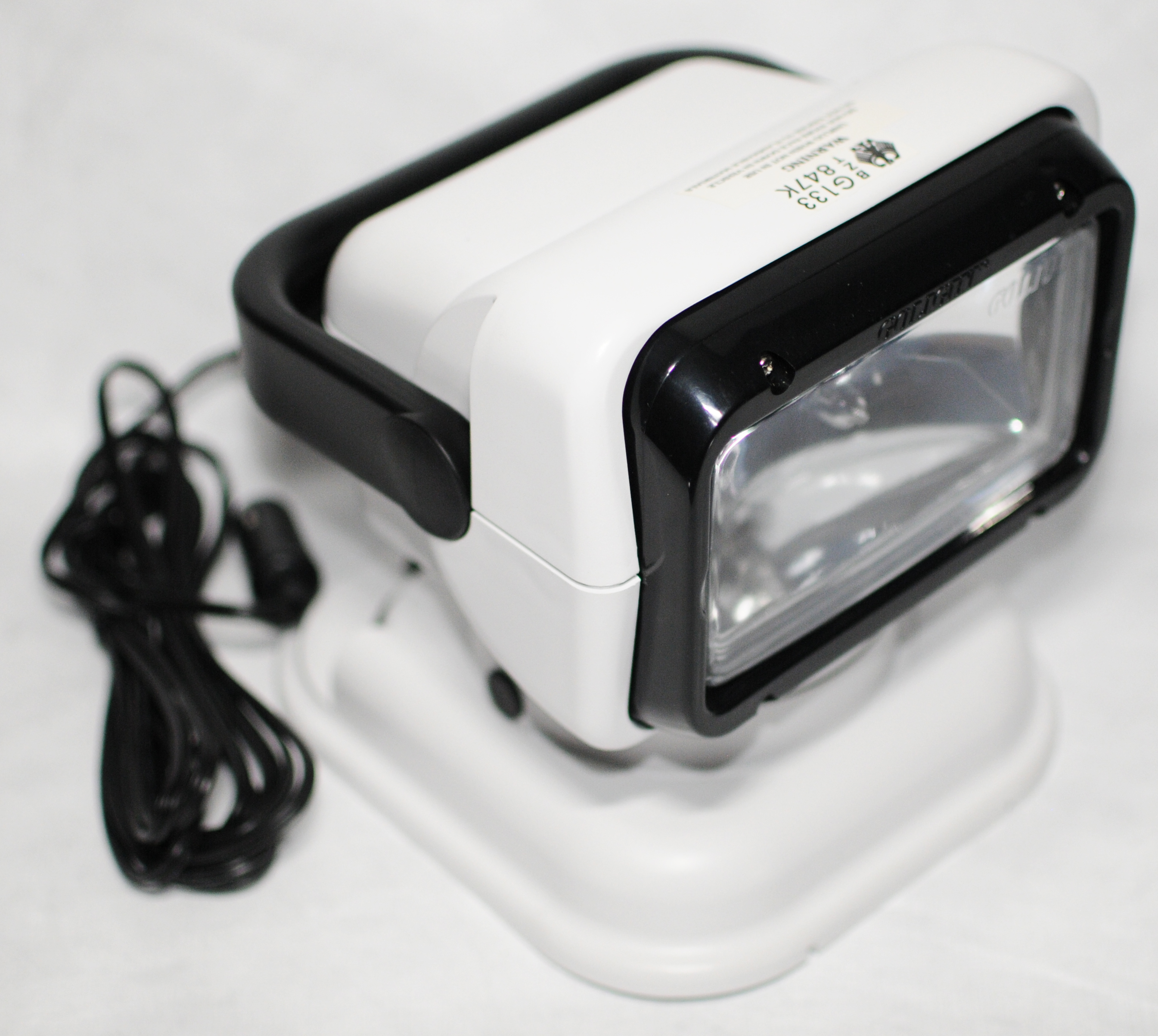

    • GoLight RadioRay Portable Searchlight
      • Model #7900 and #7901 with wireless remote and magnetic mount
      •  Model #5149 with wired remote and permanent mount
        • Both models are identical in shape and size
          • #7900 also had an optional permanent mount part available to convert its mount
          • As the permanent and magnetic shoe are cross compatible, the only non-replicable difference is the wire/wireless option.
          • Patents for both models were applied for at the same time, so both would have been in use in the mid 1990s
          • A tech at GoLight indicated that the inside and outside have changed since the 1990s
          • The #7900 remained unchanged externally at least through 2005
            Light was repainted black: Light bezel and screws are now non-gloss and match the rest of the unit
          • Rock guard is expanded sheet aluminum epoxied/puttied into place
    • Source: Benz Visitor Center Car, Vance, Alabama
Back to Top

Tires:

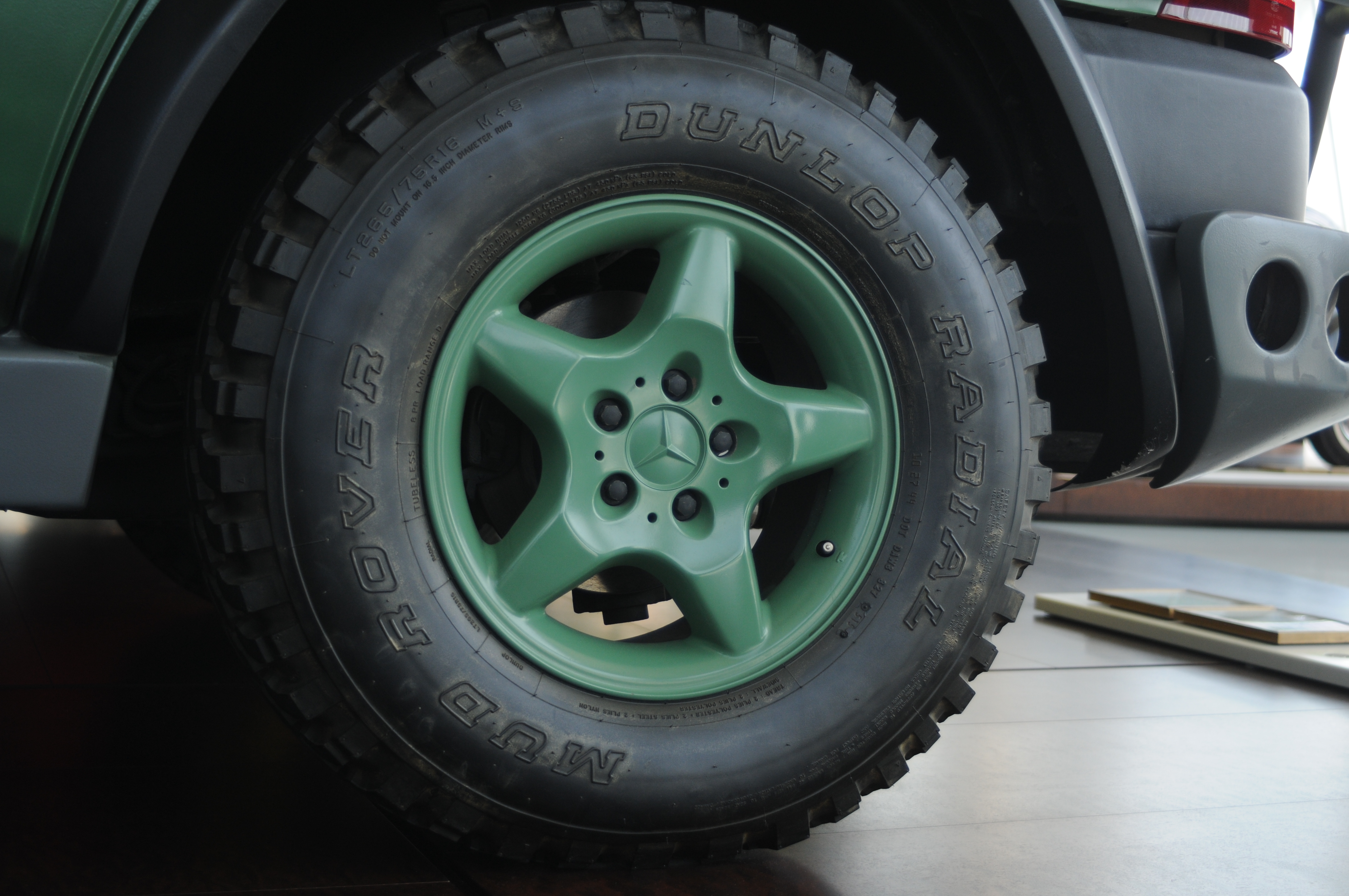

  • Dunlop Radial Mud Rover:
    • LT265 / 75R16

Body Accessories:

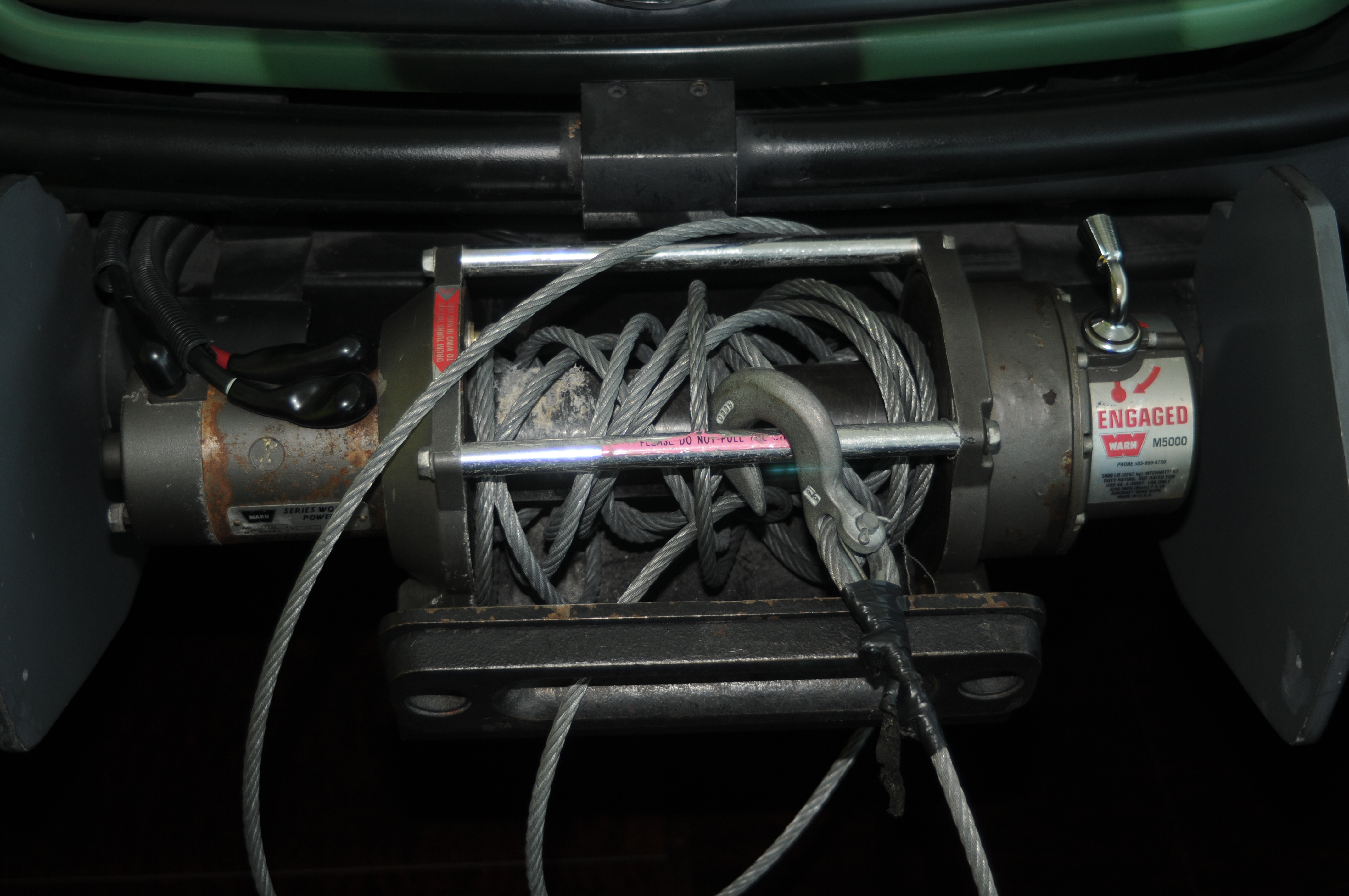

  • Winch:
    • WARN M5000

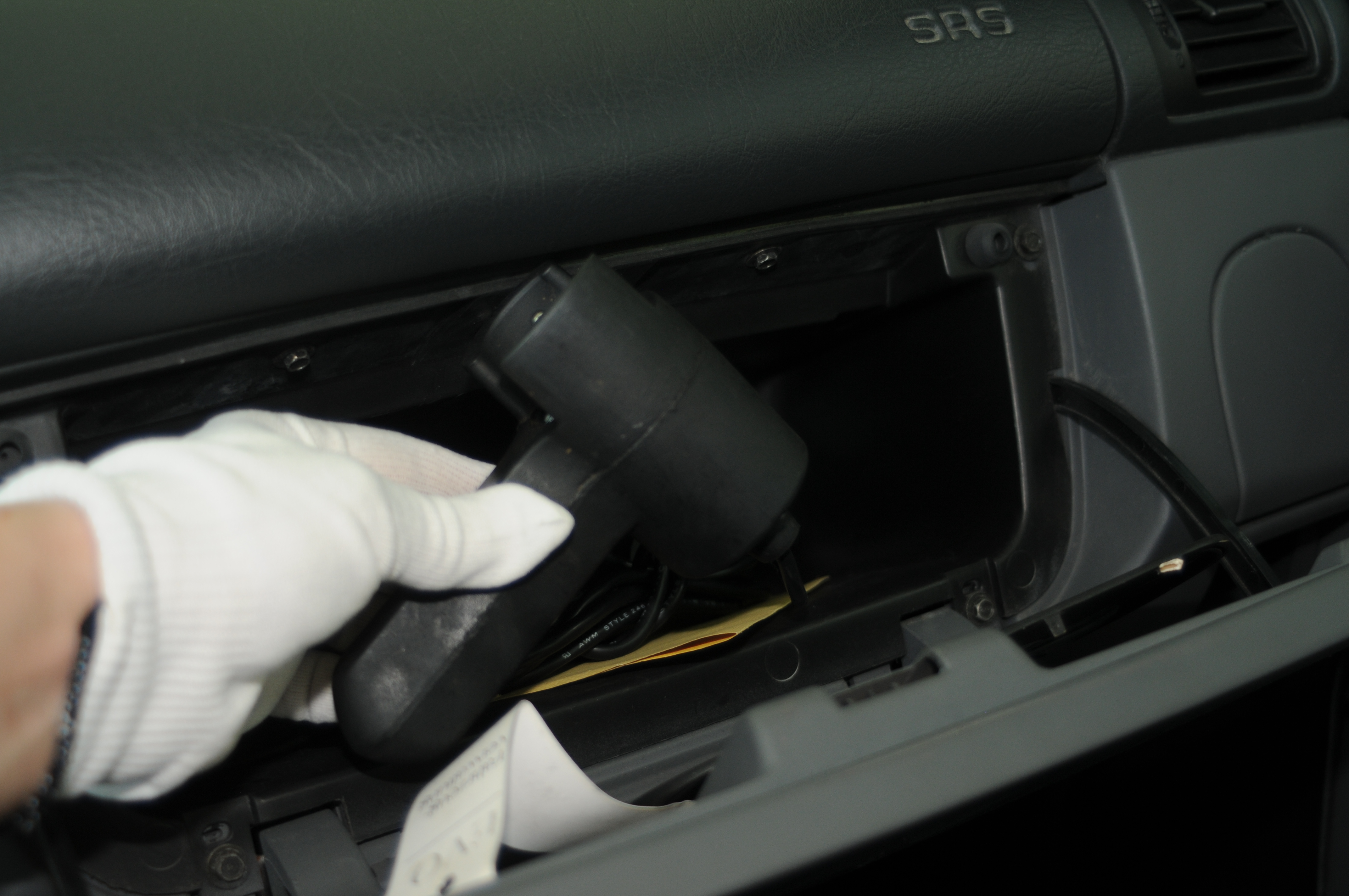

    • Wired Remote found in glovebox of the Stuttgart, Germany car

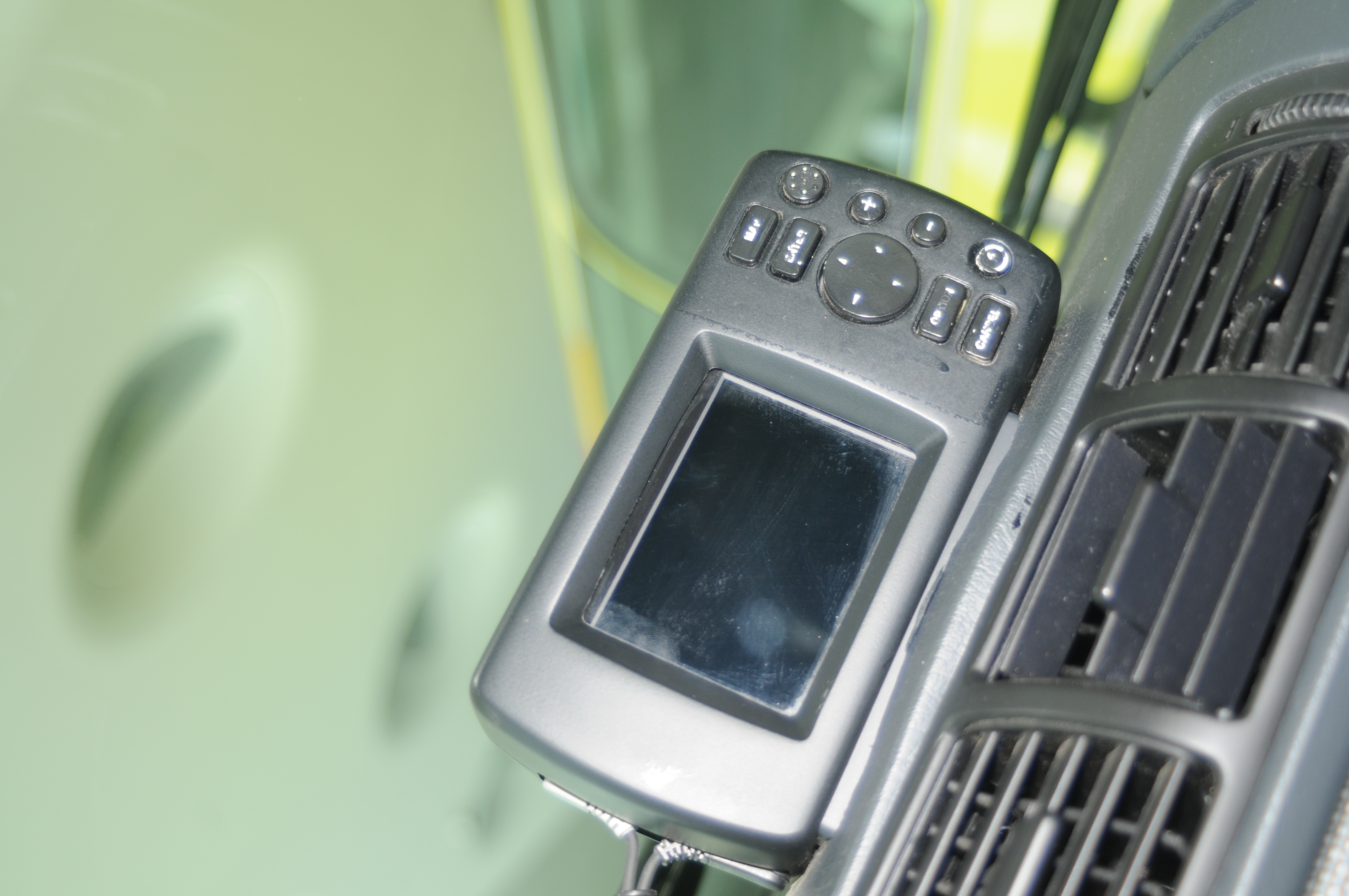

  • On-Dash GPS
    • Mixed item Prop

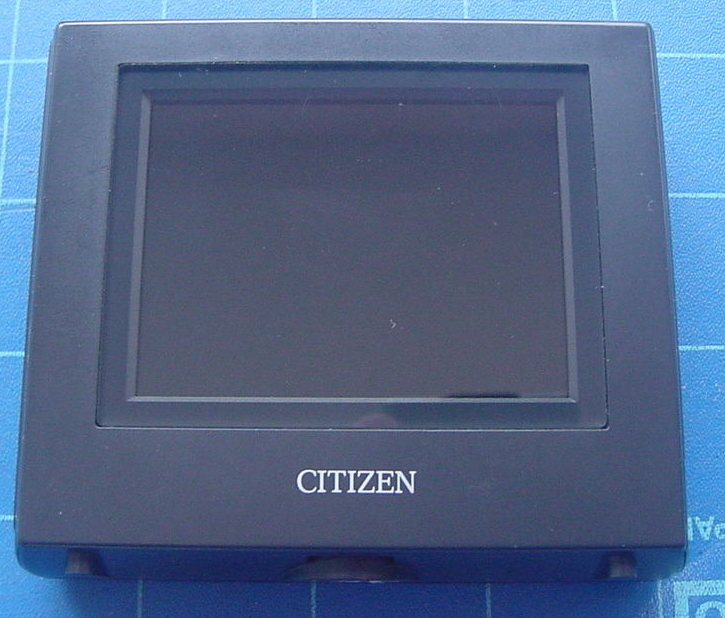

    • GPS LCD is a Citizen M329 LCD Color Video Monitor
    • Built by Jerry Moss, this is an amalgamation of several familiar designs to purposely not be a direct off-the-shelf item.
      • A close friend of Jerry, who worked with him on JP:TLW, said of this prop, “he was good at stumping people.”
  • Microphone

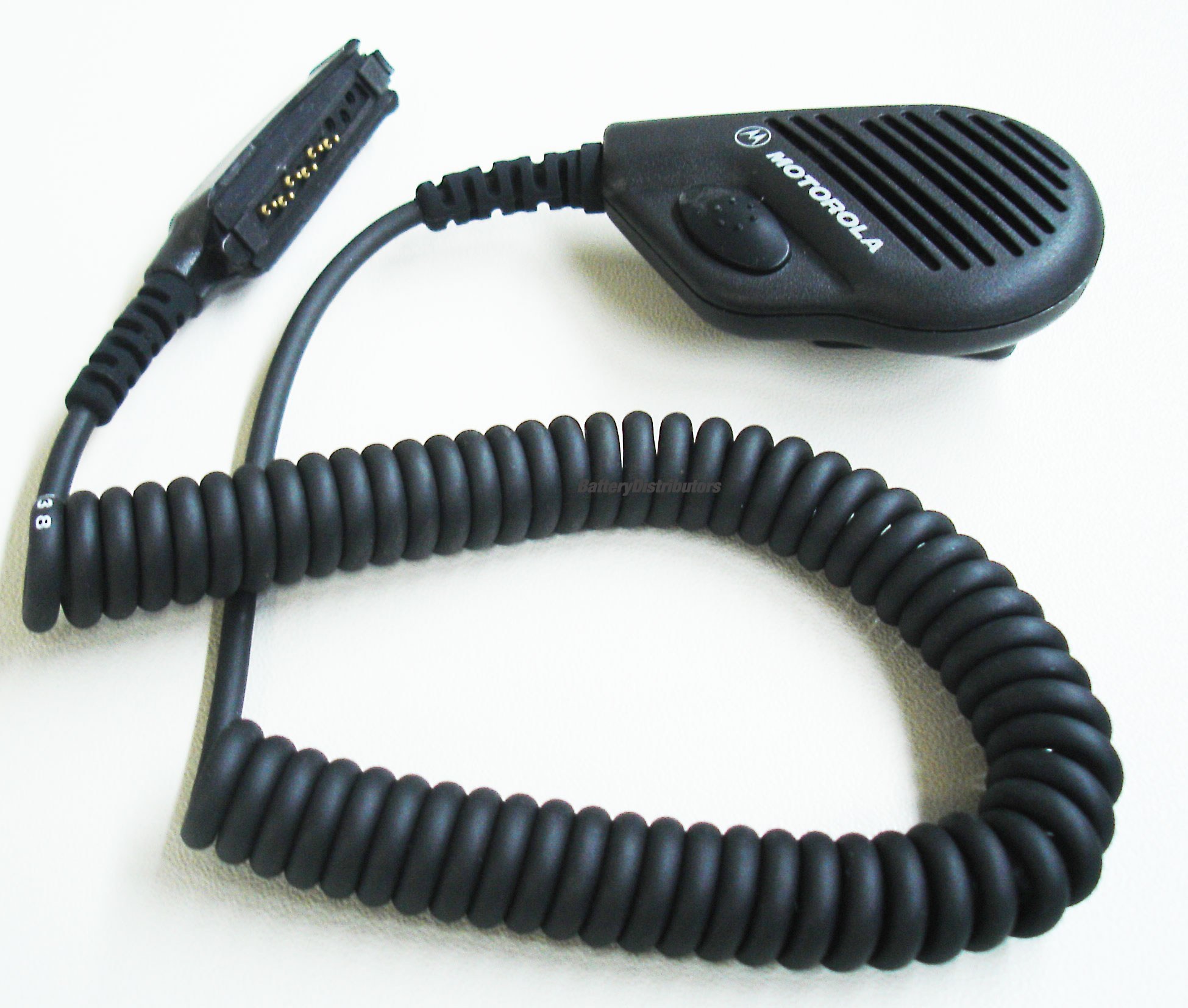

    • Motorola NMN6196A VISAR Radio Remote Speaker Mic
      • Reported to fit the following:
        • qH05KDD9AA4DN – VISAR, 16 Channel, VHF, no keypad
        • H05KDH9AA7DN – VISAR, 16 Channel, VHF, keypad
        • H05RDD9AA4DN – VISAR, 16 Channel, UHF Range 1, no keypad
        • H05RDH9AA7DN – VISAR, 16 Channel, UHF Range 1, keypad
        • H05SDD9AA4DN – VISAR, 16 Channel, UHF Range 2, no keypad
        • H05SDH9AA7DN – VISAR, 16 Channel, UHF Range 2, keypad
        • H05UCD6AA4DN – VISAR, 16 Channel, 800 MHz, no keypad
        • H05UCH6AA7DN – VISAR, 16 Channel, 800 MHz, keypad
